In this long activity, learners will use UV light to transfer a pattern (either a network of very small metal wires or self-drawn patterns) onto a plastic board in a process called photolithography.

DESCRIPTION

This activity is designed for high school students. In this experiment students use UV light to transfer a pattern (either a network of very small metal wires or self-drawn patterns) onto a surface-- a plastic board. The pattern is transferred by placing a mask (transparency sheet with the pattern) on a plastic board. The board is coated with a copper film that is covered with a light-reactive polymer (photo-resist). The polymer is exposed to UV light through the mask to make a pattern in the polymer. The metal under the exposed polymer is then chemically etched, leaving only the pattern on the surface of the board as determined by the mask. This top-down approach to nanotechnology is commonly used in manufacturing circuit boards for computers and other electronics.

JUMP TO BROWSE RELATED RESOURCES

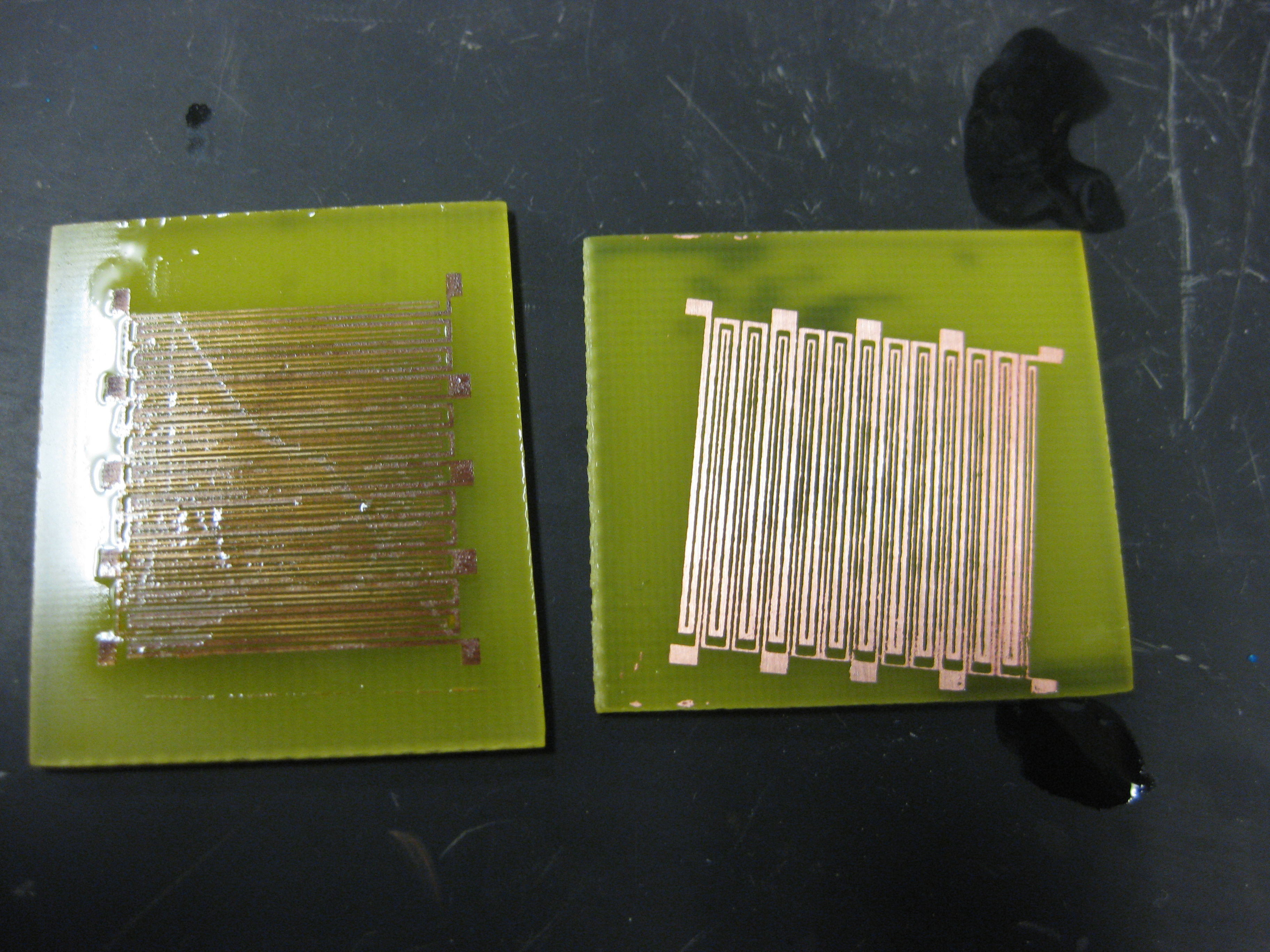

  • A circuit etched on a board using photolithography.
  • A circuit etched on a board using photolithography.

DESCRIPTION

This activity is designed for high school students. In this experiment students use UV light to transfer a pattern (either a network of very small metal wires or self-drawn patterns) onto a surface-- a plastic board. The pattern is transferred by placing a mask (transparency sheet with the pattern) on a plastic board. The board is coated with a copper film that is covered with a light-reactive polymer (photo-resist). The polymer is exposed to UV light through the mask to make a pattern in the polymer. The metal under the exposed polymer is then chemically etched, leaving only the pattern on the surface of the board as determined by the mask. This top-down approach to nanotechnology is commonly used in manufacturing circuit boards for computers and other electronics.

JUMP TO BROWSE RELATED RESOURCES

OBJECTIVES

BIG IDEA

Demonstrate the top-down approach to fabrication of nanometer sized electronic components commonly used in manufacturing circuit boards for computers and other electronics and teach the basic chemistry and physics necessary for photolithography.
